M14 Diamond Hole Saw DryXcut

SKU: MHD20000B
GTIN: 4260529244941
Category: Standard Lochsägen

M14 Diamond Hole Saw DryXcut

Technical details:

hole saw diameter: 5 mm
cutting depth: 35 mm
recommended cutting speeds - RPM 1500 rpm
M14Up to 10 times longer lifetime
Dry drilling, no water required
Clean edges and fast, accurate cuts
Premium grade diamond grit
Ideal for tiles, granite and hard and natural stone (e.g. marble)
Cutting depth is 35mm (1-3/8”)

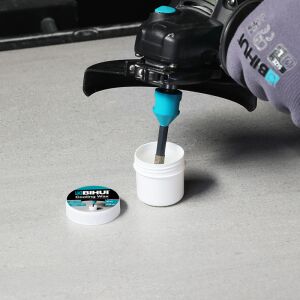

Small diameters (Ø5-12mm) with cooling wax
Side holes for release of slurry
Suitable for use with high speed electric or battery powered drilling or grinding machines

application area:
hard brick, hard floor tiles, naturalstone marble, soft tiles, wall tiles.

diameter

from

18,39 €

incl. 19% VAT , (Standard)

in Stock

This item has variations. Please select the requested variation.

M14 Diamond Hole Saw DryXcut

These diamond grit edge Hole Saws have been specially developed for professionals who need to drill in extremely hard materials. With the extreme long life time these saws are for the most difficult jobs.

FEATURE

Up to 10 times longer lifetime
Dry drilling, no water required
Clean edges and fast, accurate cuts
Premium grade diamond grit
Ideal for tiles, granite and hard and natural stone (e.g. marble)
Cutting depth is 35mm (1-3/8”)
Small diameters (Ø5-12mm) with cooling wax
Side holes for release of slurry
Suitable for use with high speed electric or battery powered drilling or grinding machines

Technical details:

hole saw diameter: 5-132 mm
cutting depth: 35 mm
recommended cutting speeds - RPM 1500 rpm
M14

application area:
hard brick, hard floor tiles, naturalstone marble, soft tiles, wall tiles.

recommended cutting speeds - RPM

Ø	hard brick	soft wall tiles	hard floor tiles	natural stone
5-132 mm	>1500	>1500	>1500	>1500

*Cutting speeds only. These depend on factors such as the density and hardness of the material. Never go faster than the suggested speed as indicated in the table.

application notes:

for your own security we recommend to wear safety glasses
please think of the chip removal

hole saw type:	diamond hall saw
Anwendungsbereich:	marble and natural stone solid ard brick hard floor tiles soft tiles / wall tiles
Shipping weight:	0,20 kg

Lochsägen Einsatzbereiche

	Solide, Harte Zziegel
	Harte sowie Bodenfliesen
	Marmor und Naturstein
	Weiche-Fliesen-Wandfliesen

Der gewünschte Einsatzbereich nicht dabei?
Finden Sie hier die passende Lochsäge zum gewünschten Einsatzbereich.

Empfohlene Schnittgeschwindigkeiten - U/ Min

Ø	Harte Ziegel	Weiche/Wandfliesen	Harte sowie Bodenfliesen	Naturstein-Marmor
5 - 132 mm	>1500	>1500	>1500	>1500

Die angegebenen Geschwindigkeiten sind eine Richtlinie zur Leistungsoptimierung. Sie können je nach Drehmoment und Leistung des verwendeten Werkzeugs variieren.*
*nur Schnittgeschwindigkeiten. Diese hängen von Faktoren wie Dichte und Härte des Materials ab. Arbeiten Sie nie mit einer höheren als der in der Tabelle empfohlenen Geschwindigkeiten.
